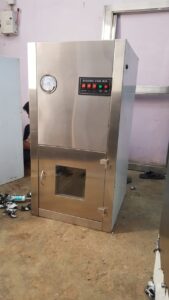

DYNAMIC PASS BOX

We offer high-quality Pass Box which is created to work as a safe passage to transfer materials, tools or items from unclassified to classified area. The product is such that one can transfer the material from one room to another even without opening the door. It has two doors which are interlocked in unique way to not get opened simultaneously. The interlocking of the controllers makes sure that that when one door is open, the other one remains closed.

Features

The pass box unit we deliver is tailor made and comes with double walled construction. It’s available in powder coated Mild Steel while the internal side walls are made from a single piece of stainless steel having covered corners for easy cleaning.

Each hinged door comes fitted with a glass viewing window to see the material kept in the pass box. With doors being electrically interlocked type, it only possible to open only one door at a time. With easy-to-clean durable feather edge rubber gasketed door seals, it becomes possible to maintain cleanroom integrity. The tool also comes fitted with UV & fluorescent light and HEPA filter.

Energy efficient.
Disposable pre-filter.
Dependable rocker switches.
Versatile.
Low price and easy installation.
Built in solid state variable speed controllers .

TECHNICAL FEATURES AND ORDERING INFORMATION

Model	MET -112	MET -112A	MET-112B
Internal work zone (L x W x H) mm	24x24x750 mm	455x455x455 mm	610x601x610 mm
Air change	1360 per hour
Air velocity (M/S)	22 M/S
Number of nozzles	4 or as per customer requirement
Air shower duration (seconds)	Factory setting at 12 seconds(adjustable)
Filtration elements	Main filter :HEPA filter Pre filter : Washable non- woven polyester fibers
Filtration efficiency	Main filter : >99.99%at 0.3 micron Pre filter :Arrestance 90%efficiency I0%
Main body	GI Powder Coated or (SS -304) as ordered
Power supply	230V, single phase 50HZ (International electrical configuration available)
Power consumption	400W
