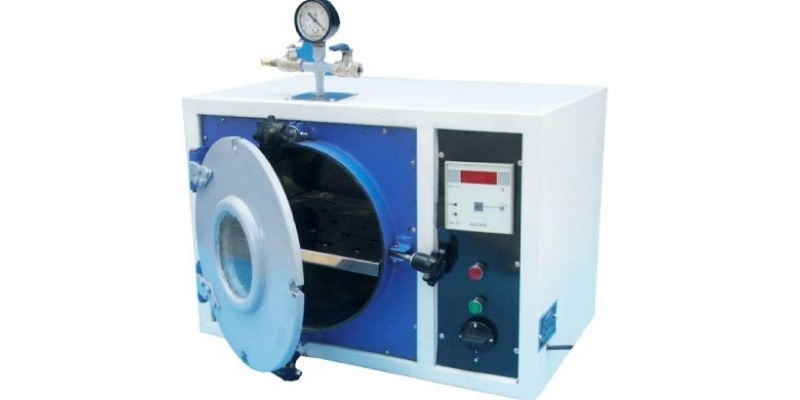

VACUUM OVEN
Features
A top-rated over fit for a variety of purposes and industries such as vacuum drying, baking, curing, conditioning and out-gassing.
The unit for also ideal for solids and liquids, vacuum embedding, plating, moisture testing, and aging test .
Superior temperature accuracy due to Microprocessor Controlled System Implementing
Offers superior uniformity and stability
Comes fitted with easy and convenient vacuuming and venting ports
Has easy-to-read vacuum gauge
Comes fitted with silicon-made high quality door sealing
Has a highly safe solid door made of steel plate
Ensures over temperature protection
Able to stop oxidation and decarburization arising out of inert atmosphere
Temperature uniformity with heat transfer from concealed heaters
Sliding stainless steel shelf with extreme ease of use
TECHNICAL FEATURES AND ORDERING INFORMATION
| Internal Dimension (mm)(WxDxH) | 300X 300x300 | 300x300X600 | 250X250X250 | 300X300X300 | 455X455X455 |
|---|---|---|---|---|---|
| Capacity | 22 Itrs | 44 Ltrs | 16 Ltrs | 28 Ltrs | 95 Ltrs |
| Temperature range | Ambient +5 oC to 150oC OR Ambient +5 oC to 200oC OR Ambient +5 oC to 300oC | ||||
| MOC Inner | Stainless Steel (SS-304) | ||||
| MOC Outer | Powder Coated Steel | ||||
| Accuracy | +3 oC | ||||
| Sensor | Pt-100 | ||||
| Display | Digital LED Display for Set Value (SV) and Process Value(PV) | ||||
| Shelves | Stainless Steel (SS-304) | ||||
| Door Gasket | High Temperature Silicone Rubber | ||||
| Safety Device | Over Temp. Protector. | ||||
| Valves | Two diaphragm valves for admission of inert gas/dry air etc. | ||||
CONSTRUCTIONAL FEATURES
- Stainless steel (SS-304)-made user friendly round internal chamber
- Steel-based exterior construction with heat cured epoxy powder coating
- Sliding shelf constructed of stainless steel (SS-304)
OPTIONS
- MICROPROCESSOR BASED PID DIGITAL TEMPERATURE INDICATOR-cum-Controller comes with an-built Digital timer to manage and control the temperature. Heating will start automatically once the unit is switched ‘ON’ and once the set value is achieved, the in-built AUTOMATIC DIGITAL MINUTE TIMER will start automatically. The heaters are switched “OFF” automatically once this set time period is over and the unit sounds BUZER to alert the user that process is complete.
- Vacuum Pump Oil free (for Oven of upto 28 Ltrs. Capacity)
- Vacuum Pump (For Oven of 44 Ltrs. and 95 Ltrs. Capacity)
- Digital vacuum Indicator with transducer
