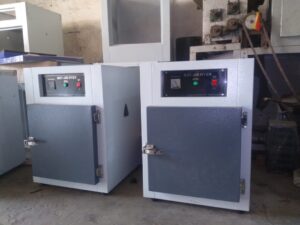

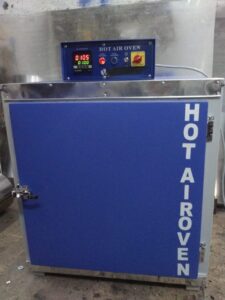

HOT AIR OVEN
Features
This high-quality oven is most suitable for various experiments across industries such as microbiology, R & D labs, cell cultivation of animals & & plants and food for various laboratories labs etc
Its forced convection system makes sure good mixing, strong dispersion, and also helps maintain higher temperature uniformity inside the chamber.
Comes equipped with Neoprene-made synthetic door gasket on the double walled door
Comes with user oriented design of shelves that lets anyone adjust each space of shelves without facing any difficulty
Have two adjustable ventilation slides that help control inner air/ vapor circulation
Ensures uniform heat distribution due to beaded heating elements placed in ribs, at bottom and sides
TECHNICAL FEATURES AND ORDERING INFORMATION
| MODEL | MET-111 | MET-111-A | MET-111-B | MET-111-C | MET-111-D | MET-111-E |
|---|---|---|---|---|---|---|
| Internal Dimension (WxDxH) in mm | 300x300x300 | 355x355x355 | 457x457x457 | 450x450x600 | 610x610x610 | 605x910x605 |
| Capacity | 27 Ltr | 45 Ltr | 95 Ltr | 121Ltr | 227 Ltr | 333 Ltr |
| Heat Load | 0.75 KW | l.0 KW | 1.50 KW | l.50 KW | 2.0 KW | 3.0 KW |
| No. Of Shelves | 2 | 2 | 2 | 2 | 3 | 4 |
| Temperature Range | Ambient to 250°C | |||||
| Type | Available with or without forced convection system as ordered | |||||
| Temp.Controller | Microprocessor based PID Digital Temp. Indicator cum control. | |||||
| Temp.Accuracy | +/-1°c | |||||
| Temp. Uniformity | +/ -2°C | |||||
| Insulation | Ceramic & Glass wool board | |||||
| Temp. Display | LED/LCD display . | |||||
| Sensor | PT-100 | |||||
| Timer | 00-99 h | |||||
| Safety | High temperature Safety cutoff with audio/visual Alarm | |||||
| Power Supply | 220/240V AC,50-60Hz | |||||
CONSTRUCTIONAL FEATURES
- The outer body constructed of PCRC sheet duly powder coated
- Stainless Steel (SS-304) used in making of inner chamber and perforated trays
- Minimal heat dissipation due to the space between inner chamber and outer wall being filled with high grade mineral wool
- Easy portability due to bigger sized units mounted on caster wheels
- No leakages through the door gasket due to door fitted with heavy duty hinges and door handle
- 50/60 Hz supply to work on 220/230V AV
OPTIONS
- Communication Port for PC Interface, complete with Communication cable.
- Profile Digital Microcontroller comes with total 160 steps (10 programmes of 16 steps each) with soft start, memory retention during power failure and programme repeat cycle in lieu of standard controller
